4. Build the Journey

A Journey is a flow of steps that the SDK runs on the device. Each step reads from and writes to the JourneyContext — a per-execution variable bag — so later steps can use what earlier steps produced.

Create a draft

1. Open Journeys in the Orchestrator.
2. Click + to start a new Journey. The Journey Editor opens on the Basics and Audience section.

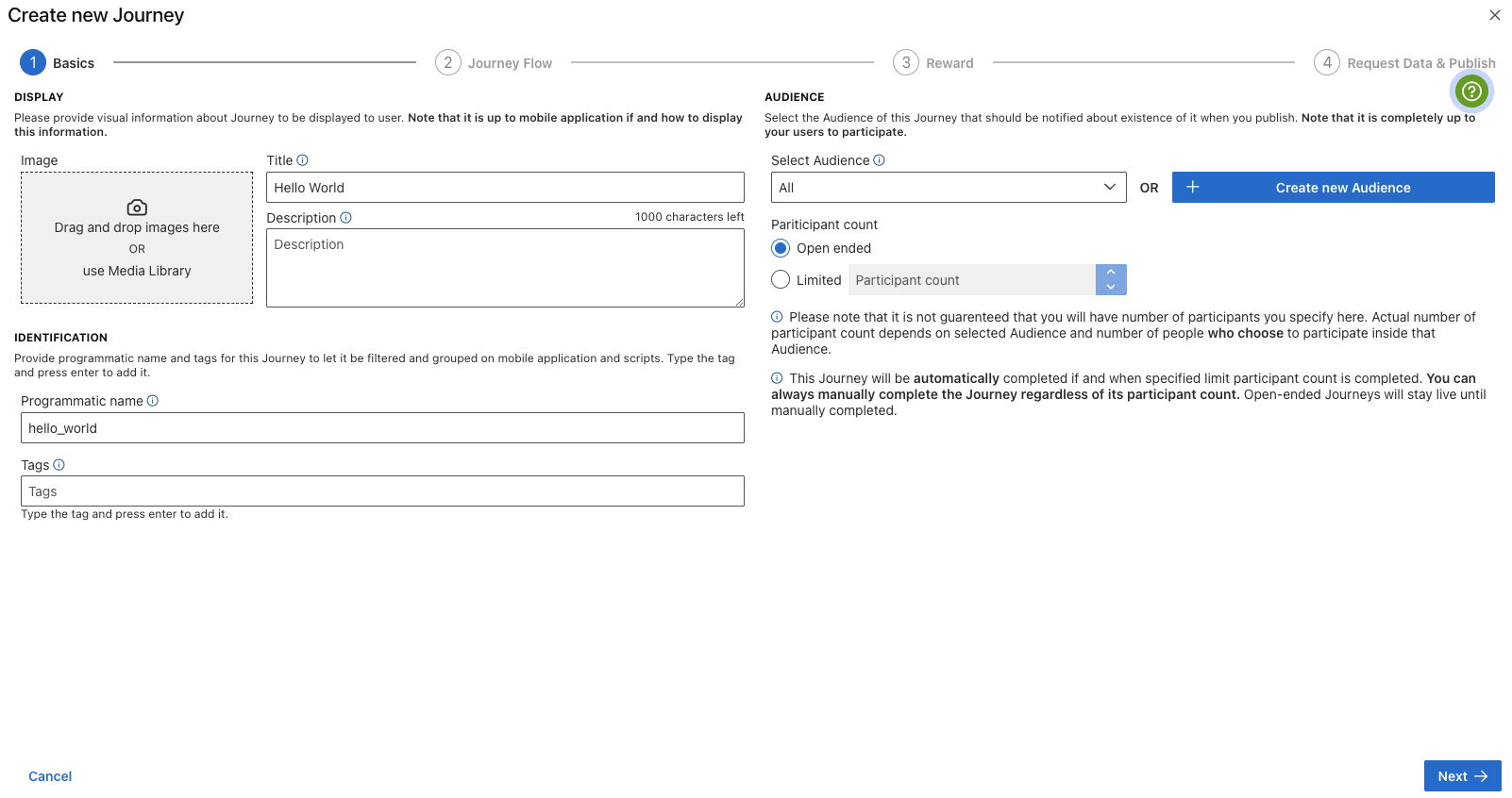

[#03] Journey Editor — Basics and Audience

3. Fill in:
   • Title: Hello World
   • Programmatic name: hello_world (this is the unique identifier your host app will use — see running Journey in your app.
   • Description: A first DataSapien journey that greets the user.
   • Tags: add a tag like getting-started so your app can filter for it.
   • Target Audience: select the built-in All Audience. (More on Audiences later.)
   • Leave participants as Open-ended.

Design the flow

Move to the Journey Flow section. You'll use the Flow Designer to drag five steps onto the canvas and connect them.

The flow is:

Start → MeData step → Question step → Script step → Screen step → End

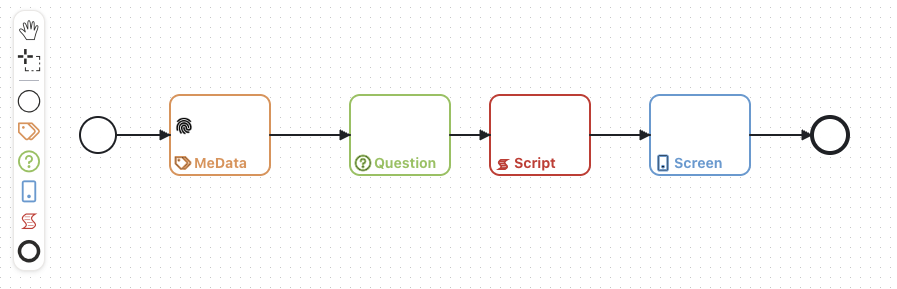

[#04] The five-step Hello World flow on the canvas

MeData step — collect favorite_color

Drag a MeData step between Start and the next step. Double-click it to open the MeData Usage Editor and select your favorite_color Definition.

When this step runs, the SDK shows the question you authored on the MeData Definition, stores the answer in the on-device data vault, and puts it into the JourneyContext under the key favorite_color.

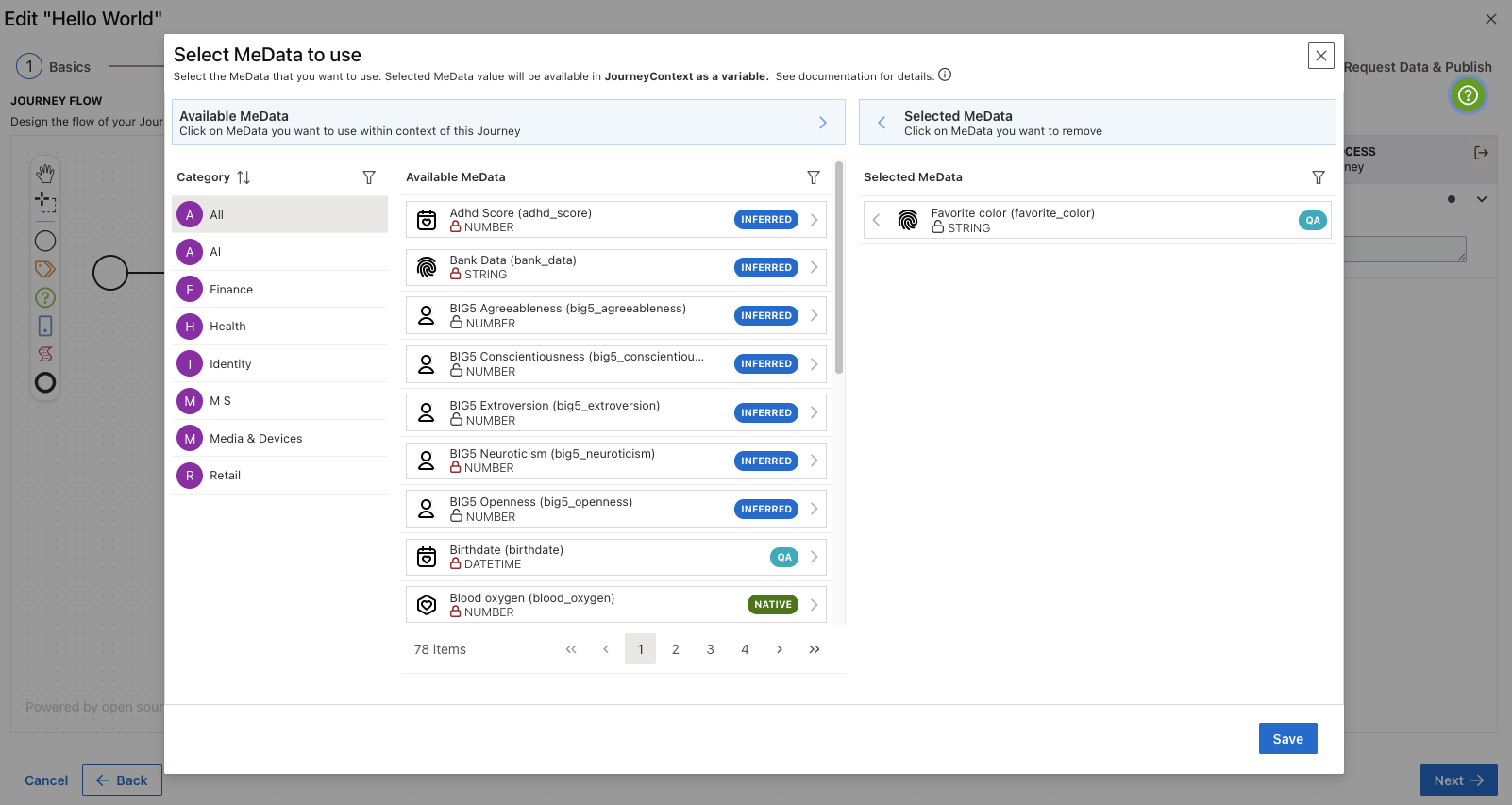

[#05] Selecting favorite_color in the MeData Usage Editor

Question step — ask for the user's name

Drag a Question step next. Double-click it to open the Question Editor and configure:

• Question text: "What's your name?"
• Free-form answer (no predefined choices), single answer.
• JourneyContext variable: user_name.

After this step runs, user_name is available in the JourneyContext.

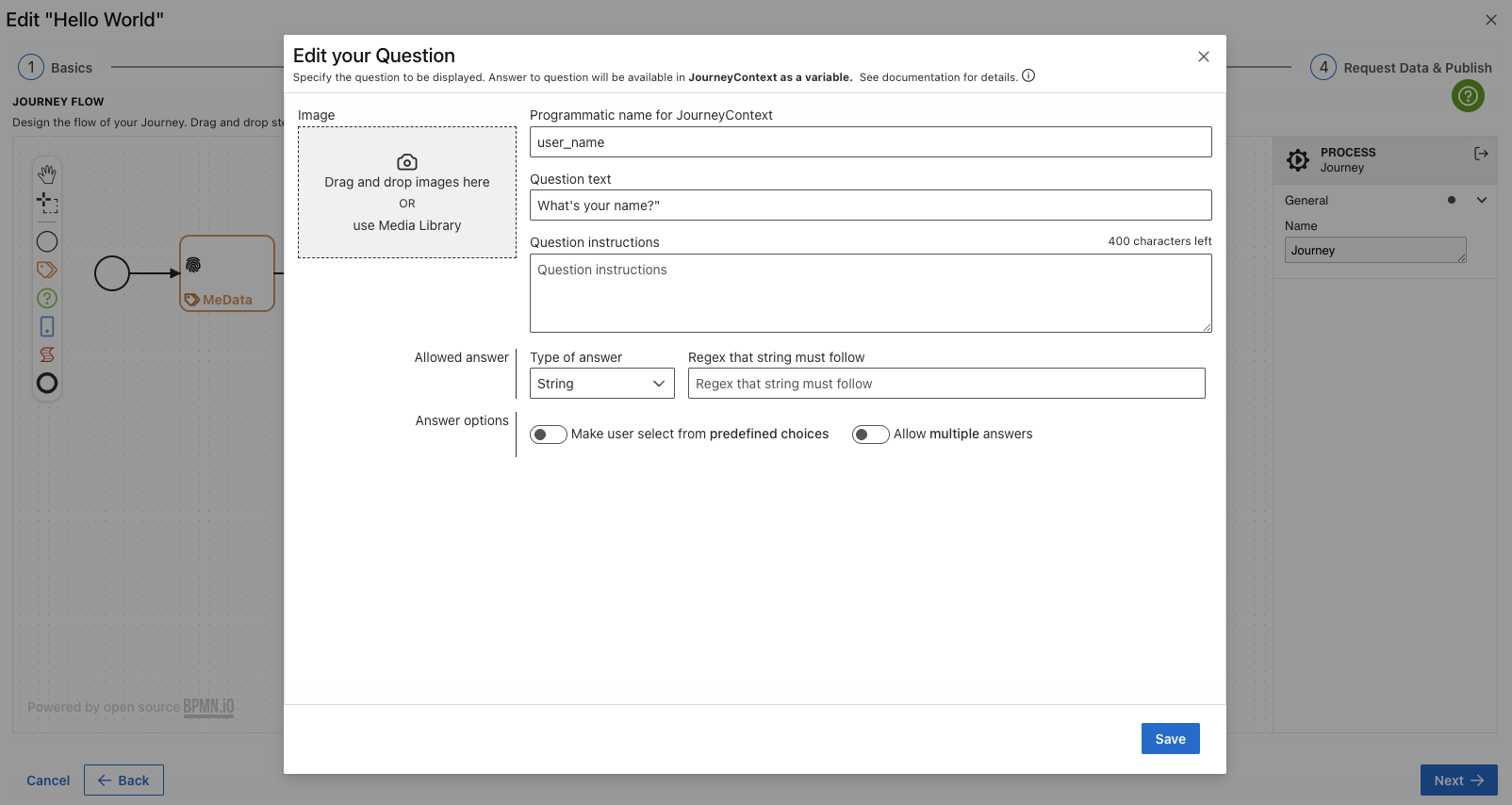

[#06] The Question Editor configured with "What's your name?"

Script step — compose the greeting

Drag a Script step next. Double-click to open the Script Editor and paste:

// Read values that earlier steps put into the JourneyContext.
const userName       = JourneyContext.getValue("user_name");
const favoriteColor  = JourneyContext.getValue("favorite_color");

// Compose the greeting and write it back to the JourneyContext.
const greeting = `Hello, ${userName}! Your favourite colour is ${favoriteColor}.`;
JourneyContext.putValue("greeting", greeting);

// Tell the SDK the script finished successfully and the Journey can advance.
onSuccess(true);

Script API in Journeys

• JourneyContext.getValue("name") reads a value an earlier step wrote.
• JourneyContext.putValue("name", value) writes a value for later steps to read.
• A Script step must end by calling onSuccess(true) to advance, or onSuccess(false) to signal failure. There is no return value used by the SDK.
• async/await is supported — wrap external work in try/catch and call onSuccess(false) from catch.

Scripts can do much more

Script steps run in the SDK's embedded JavaScript engine. They can read MeData via the MeDataService, invoke ML/AI models via the IntelligenceService, and call external APIs via Managed APIs. See Scripts and Managed APIs for the full picture.

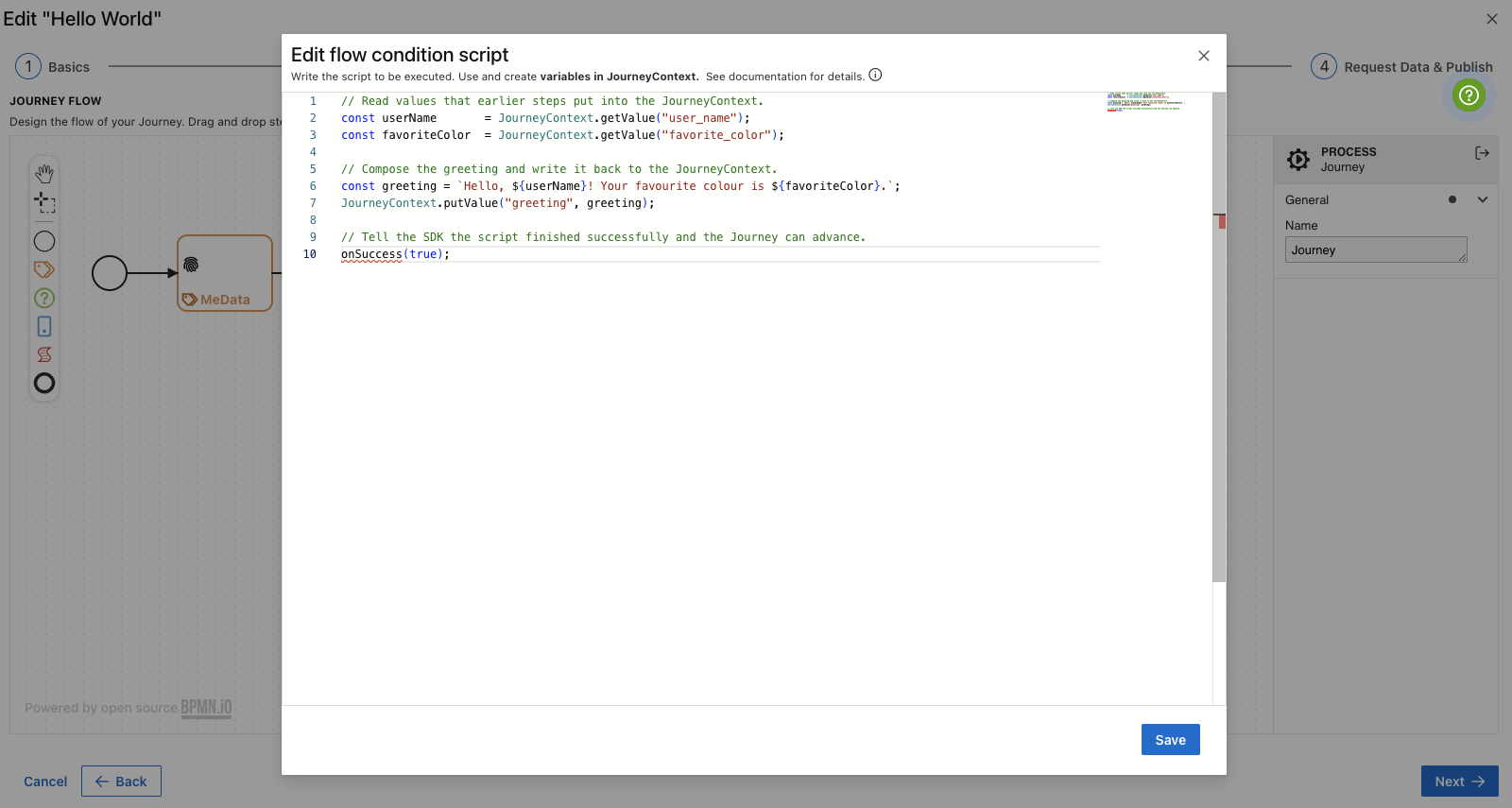

[#07] The Script Editor composing the greeting

Screen step — display the greeting

Drag a Screen step before the End step. Double-click to open the Screen Designer and:

1. Drop a Text (or Rich Text) component onto the canvas.
2. Set its content to {{greeting}}. The {{...}} syntax embeds a JourneyContext variable.
3. Drop a Button component, label it Done, and wire it to advance the Journey.

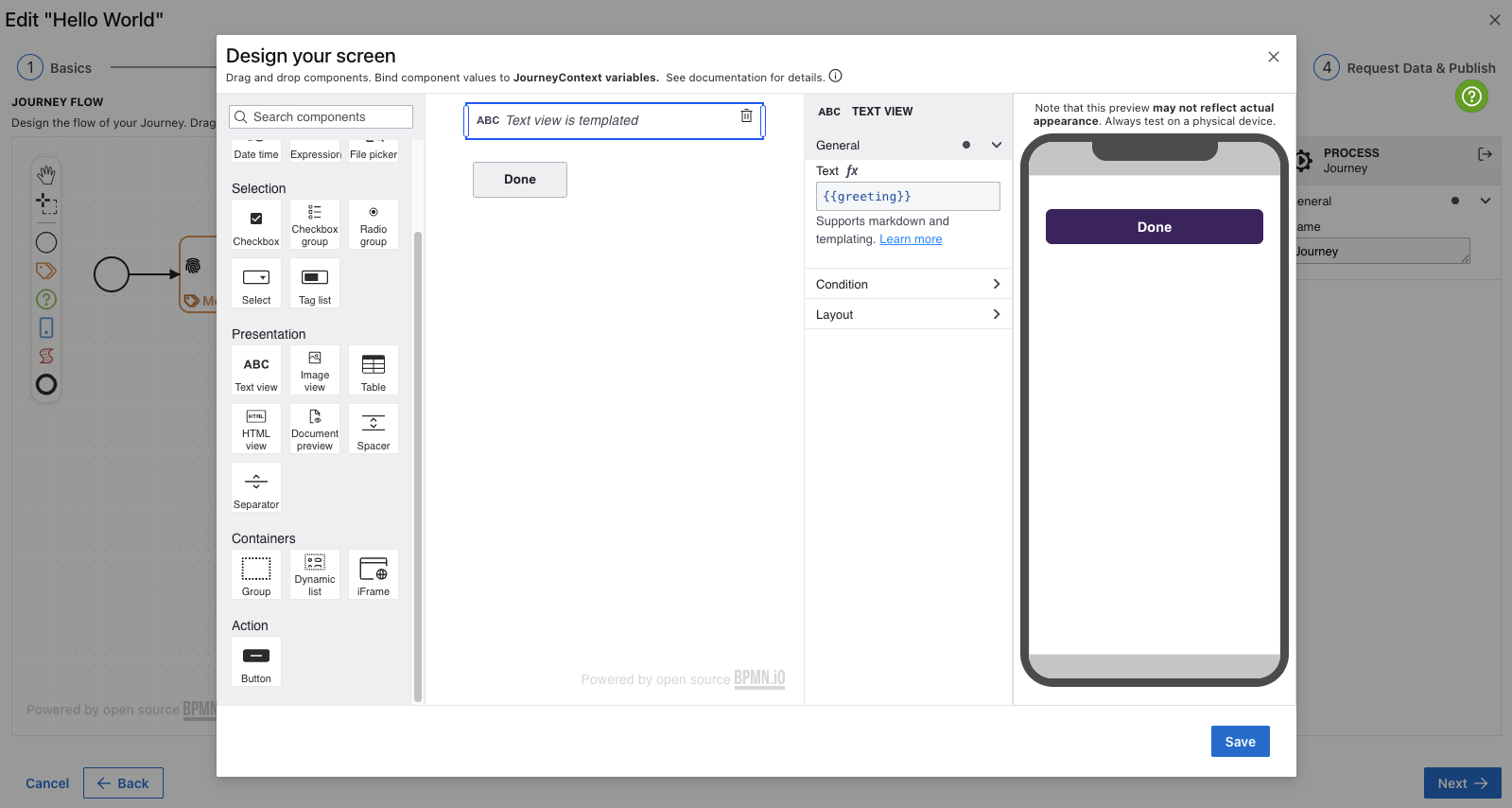

[#08] Screen Designer displaying the composed greeting

Connect steps

Connect Start → MeData → Question → Script → Screen → End steps if you havent already.

Conditional Flows

You can have conditional connections between steps. To create a conditional connection, double click on the connection and write the JavaScript code to return either true or false. The SDK will execute the code and follow this connection if it returns true.

Click next at the bottom of the page to finish designing the flow and continue Journey creation.
